6 Pin 16A Quick Locking Connector

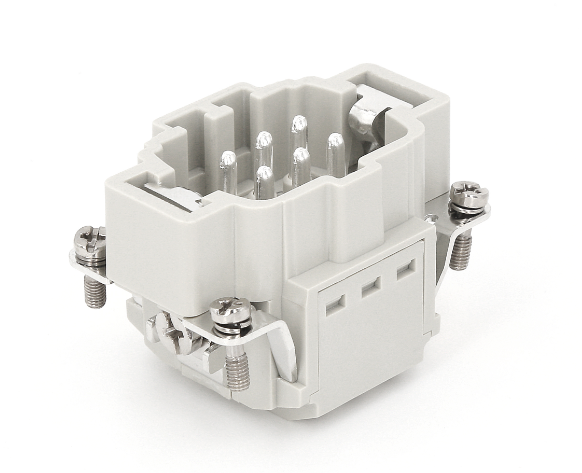

This standard 6-pin connector insert is compatible with 6B hoods and housings, featuring a quick lock terminal system that significantly reduces on-site debugging time. Ideal for projects with tight construction schedules, it delivers efficient and convenient performance for industrial applications.
Key Features
- Quick lock terminal for rapid installation
- Compatible with standard 6B hoods and housings
- Reduces on-site debugging time
- Ideal for time-sensitive projects
- Available in male and female configurations
Technical Specifications
| Specifications |
DIN EN 60 664
DIN EN 61 984 |
| Termination Method |
Quick lock |
| Gender |
Male/Female |
| Model |
HE-006-MZ/HE-006-FZ |
| Rated Current |
16A |
| Rated Voltage |
500V |
| Rated Impulse Voltage |
6kV |
| Pollution Degree |
Ⅲ |
| Rated Voltage (UL/CSA) |
600V |
Products Details

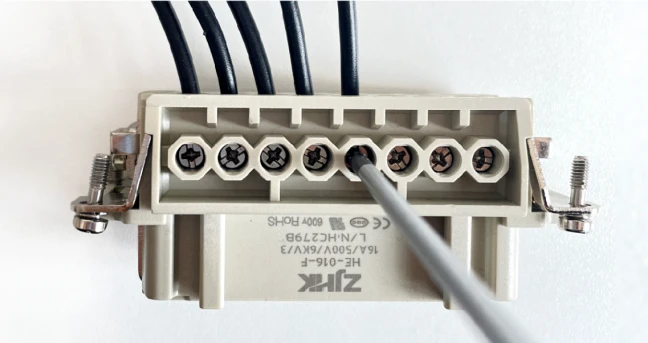

Screw Terminal VS Quick Lock Terminal
The traditional connection method cannot achieve pre-installation of connectors on the cabinet. It is necessary to first fix the base on the cabinet, then connect the wires to the core components, and finally fix the core components on the base.Quick lock terminal allows connectors to be pre-installed on the cabinet and then wired.
Assemble Method
The maximum distance between connectors is 21 millimeters. Align the male plug (with a pin) with the female plug (with a socket, spring clip, etc.), accurately align through the guiding structure, and push the pin into the female plug socket. Shrapnel clips pins to achieve electrical connection.
FAQ
What's the delivery time?
It usually takes 7~10 days for bulk order, 1~3 days for small order is enough. Custom orders will take more time.
How is the quality of your products?
We have passed CE, RoHS, CQC UL and other certifications, and passed the ISO9001:2008 quality management system certification.
If there is a product quality problem, how to solve it?
We provide 12 months warranty, if there is any quality problem, we will recall the goods and replace them in time.
